The OMNIKEY® 5427 supports keyboard wedge functionality that allows you to assign RFID card data to a Truck.
Set the keyboard focus to an input control, place a card over the device and data is retrieved from the card and 'typed' directly into the control.
The reader is connected to the PC using USB.

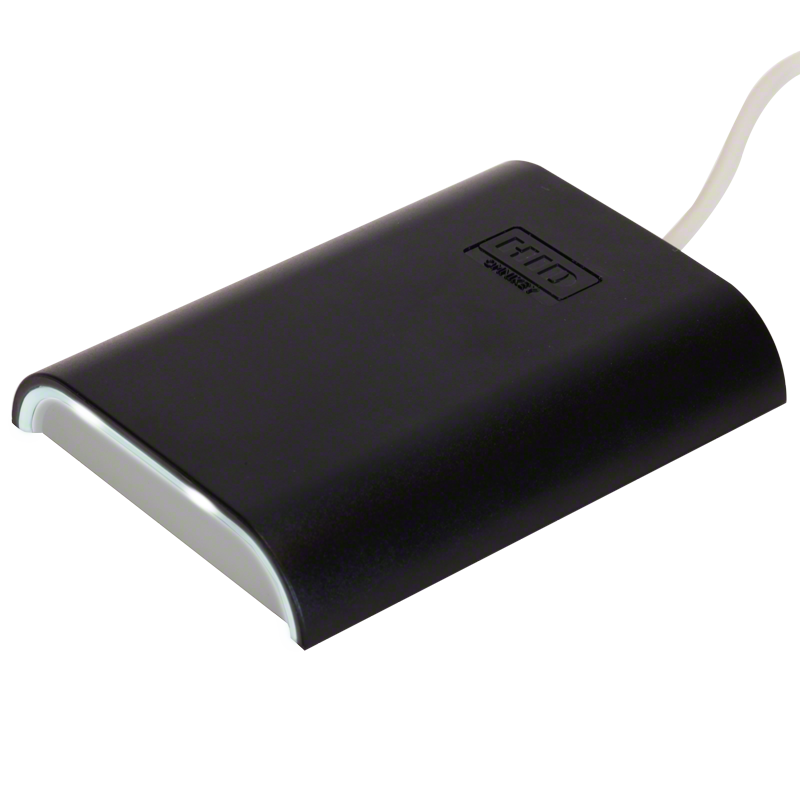

OMNIKEY® 5427
Data packet

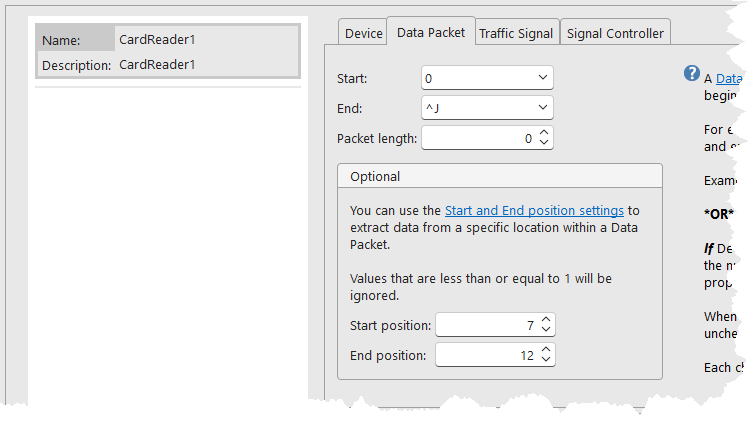

When used in junction with the OMNIKEY 5427 keyboard wedge, the MaxiProx reader's data packet must be configured as follows:
Start: 0
End: ^J
Start position: 7
End position: 12
Example
